H-Schaft Pleuel for VW 1.9L TDI PD90 PD100 PD115 Conrod inkl. ARP2000 1.992"

Application

for VW 1.9L PD90 PD100 PD115 Type 4340 EN24

Fitment Details:

for VW Golf MK III 1993-1999 Hatchback 1.9 Syncro
for VW Golf MK III 1994-1999 Estate 1.9 Syncro
for VW Golf MK V 2003-2009 Hatchback 1.9
for VW Golf Cabriolet MK III 1995-2002 Convertible 1.9
for VW Jetta MK III 2005-2010 Saloon 1.9
---
Pin Type: Floating Pin Piston

Dimension

Center to center length:144mm/5.669"
Big end diameter:50.6mm/1.992"
Small end diameter:26.01mm/1.024"(tapered small end)
Big end width:25mm/0.984"
Small end width:25mm/0.984"

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

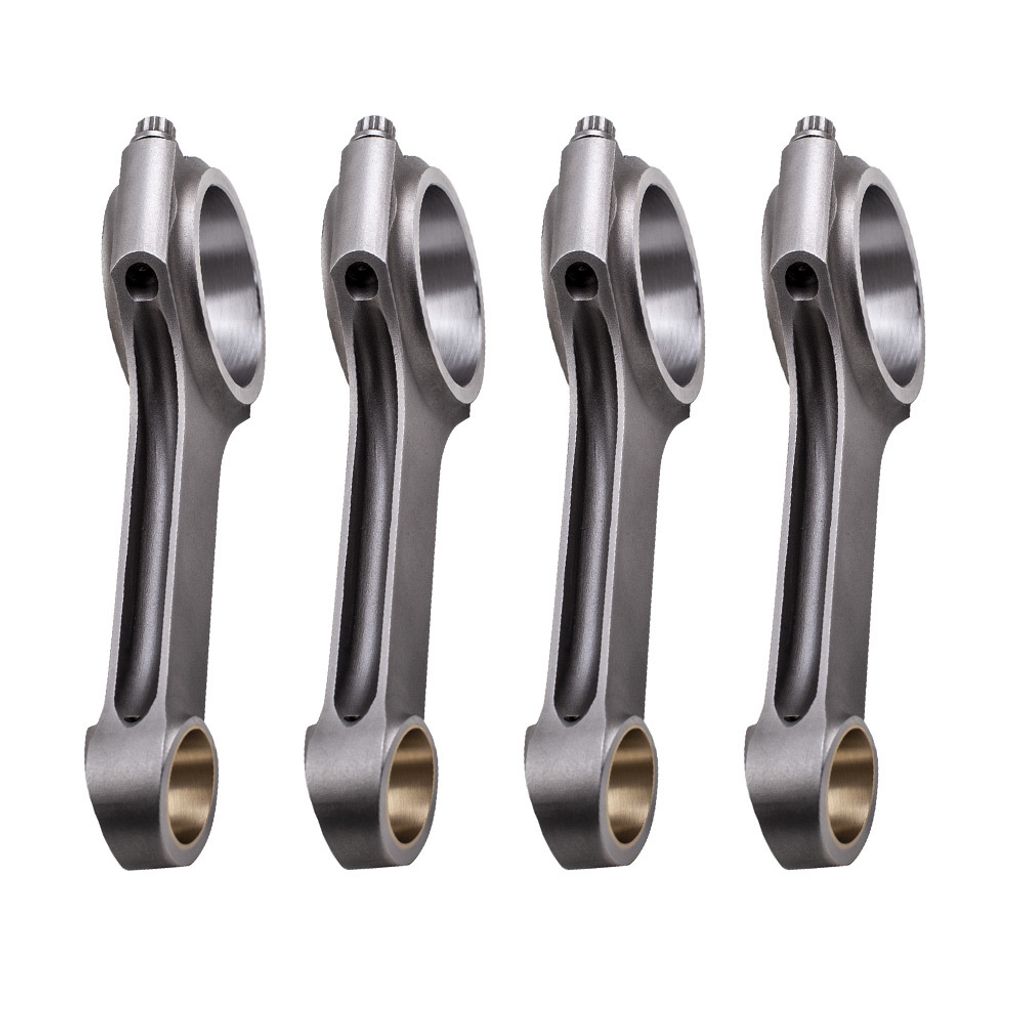

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Feature

1.
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

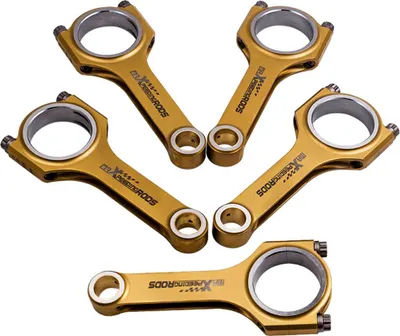

*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
